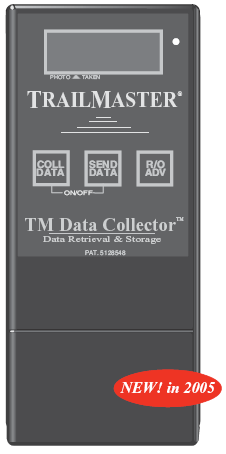

The TRAILMASTER TM DATA COLLECTOR II is a data retrieval device
used to retrieve and store data which has been recorded by
TRAILMASTER Infrared Trail Monitors. The TM DATA COLLECTOR II is
carried to each monitor, connected with a cable, and the
data is quickly transferred. This allows the TRAILMASTER trail
monitors to remain in the field collecting new data while the
collected data is carried back to be printed out and analyzed.
The NEW! TM DATA COLLECTOR II is designed to hold 59,000
events by date and time. This information is stored in nonvolatile
memory and is not lost when batteries are changed.
Each standard TRAILMASTER trail monitor can store 1000 events.
(Expanded memory monitors can store more events.) The
NEW! TM DATA COLLECTOR II can store event data from many
TRAILMASTER trail monitors -- more than 59,000 total events.
The data is collected and stored by unit numbers, making it
easy to keep track of data from various locations. When used

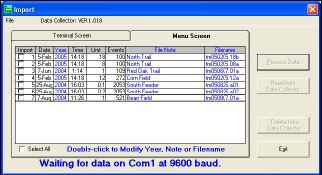

with the NEW! TM STATPACK software, data can be viewed
using a new advanced catalog funtion. Menu-driven operation*
is available when used with TM STATPACK software ver.
2004.1214.69 and above.
For the most efficient data handling, the TM DATA COLLECTOR
II is designed to be used with an IBM compatible computer
using the TM STATPACK software for data analysis; however, the
data can be read out manually from the TM DATA COLLECTOR
Larger memory configurations are available.
